Millivolt-Tested Pilot Assembly Replacement, Right Part Every Time
We confirm which component failed before ordering a single replacement part.
Your Gas Fireplace Pilot Won't Stay Lit - Here's What That Actually Means
A pilot that lights briefly, then dies, almost always points to one failed component inside the ignition system.
The pilot assembly – the ignition sub-system inside a gas fireplace that includes the pilot burner, thermocouple, thermopile, and sometimes an electronic igniter – does not fail all at once. One part inside it stops working. The rest may be perfectly fine.
Most homeowners notice this the same way: they hold the igniter button down, the pilot catches, the flame looks normal. Then they let go. And it goes out. That is a thermocouple or thermopile failure. Not the whole unit. Not a gas line problem. One component, with a specific and testable cause.
The thermocouple is a small metal sensor that sits in the pilot flame and generates a low-voltage signal. When it stops sensing heat correctly, it cuts gas flow. The thermopile is a larger voltage-generating component. Gas fireplaces that use a wall switch or remote rely on it. It fails independently of the thermocouple and needs its own test. Knowing which one failed is the starting point.
DFW Builder-Grade Gas Fireplaces Are Reaching Component Replacement Age
The builder-grade gas fireplaces installed across DFW suburbs between 1995 and 2010 are now in their prime replacement window.
Here’s what most Dallas homeowners don’t realize about their gas fireplaces. Thermal cycling – the repeated heating and cooling a pilot assembly goes through every season – degrades thermocouples and thermopiles over time. Not heavy use. Just time and temperature change.
Dallas weather makes this worse. A gas fireplace in a North Texas home might sit completely dormant from April through October. Six months of zero use. Then the homeowner turns it on in late October, right before the first cold stretch, and nothing holds.
In zip codes like 75093 in Plano, 75007 in Carrollton, and 75013 in Allen – neighborhoods built during that 1995-2010 surge – we are seeing this pattern consistently. Same brands, same approximate ages, same component failure mode. We have worked on these units long enough to recognize the failure signature before we even open the firebox. That is pattern recognition built over 33 years in DFW.
How a Millivolt Meter Tells Us Exactly Which Part Has Failed

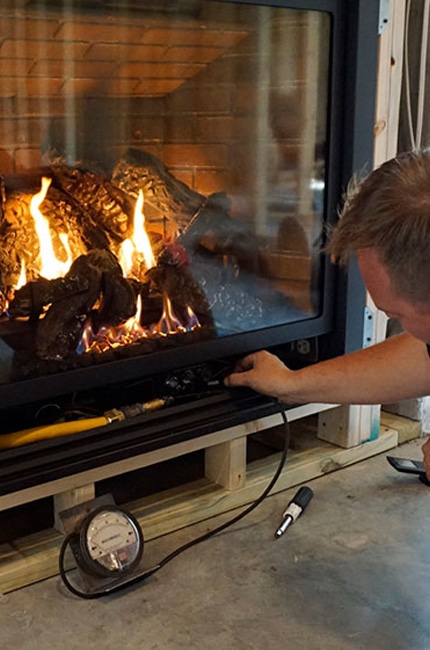

Before we order a single part, we test thermocouple and thermopile output with a millivolt meter.
On calls where a homeowner wasn’t sure what had already been checked, the millivolt meter provides a clear answer. It tells the story the flame cannot.
Here is how that plays out in the field. On a recent call in Richardson, a homeowner had a gas insert – a gas-burning unit installed inside an existing masonry firebox – that would not hold the pilot. Classic symptom. Connecting the millivolt meter to the thermocouple leads produced a reading of 3 millivolts. A functioning thermocouple should read between 25 and 35 millivolts. That one number confirmed the failure.
The thermopile on the same unit read 380 millivolts. Normal range. So the thermocouple was replaced – one part, one visit. Pilot held on the first test after installation. Replacing the full pilot assembly would have swapped a component with years of life remaining. The millivolt test cost nothing extra. It just required doing it.
OEM replacement parts – original equipment manufacturer components matched to the specific fireplace brand and model – are ordered based on the confirmed failed part and the unit’s model number. A generic thermocouple that does not match the valve type can produce the same symptom all over again.
One Confirmed Part, One Repair Visit, One Fireplace That Works Again
Diagnostic-first repair means you get an accurate fix – not a list of parts that might solve the problem.
Some homeowners call us after going a full season without a working fireplace because they were not sure whether to repair or replace. That is a reasonable question. A gas fireplace is not a small investment.
A thermocouple or thermopile failure does not mean the fireplace is worn out. It means one component has reached end-of-life. The firebox, the burner, the valve – if those test fine during diagnosis, the repair is targeted and the unit has plenty of service life ahead.
We do not recommend full unit replacement when a component repair resolves the issue. If diagnosis surfaces something that changes that picture – a cracked heat exchanger, a compromised valve – we tell you plainly what we found and what the options are. Just the accurate read.
From First Symptom to a Lit Pilot: Our Replacement Process
Diagnostic Assessment
We start with the symptom. Pilot lights but won’t hold? Won’t light at all? Each symptom points to a different part of the assembly. We ask specific questions before we arrive so the tech comes prepared. On-site, the millivolt meter connects before anything is disassembled. The millivolt reading tells us which component failed. Thermocouple output below 25 millivolts – that is the part. Thermopile output below 300 millivolts on a remote-capable unit – that is the part. Both low? We address both, confirmed with data, not assumption.
OEM-Matched Replacement
We pull the model number from the unit’s rating plate. Parts are matched to that specific model. Builder-grade gas fireplaces installed across DFW during the 1990s and 2000s often have proprietary valve connections – a generic part will not seat correctly on those systems. The right part matters.
Post-Installation Verification
New component installed. Millivolt test repeated. Pilot held for a sustained burn period. Main burner cycled. Gas connections rechecked. We do not call it done until the flame holds and the burner responds correctly. That is the standard on every call.
Pilot Assembly Replacement Across Dallas, Plano, Richardson, Carrollton, Irving, and the Northern Suburbs
We serve pilot assembly replacement calls throughout the DFW Metroplex – from the urban core to the outer suburbs. Our crews reach Dallas, Plano, Carrollton, Irving, McKinney, Frisco, Allen, Garland, Richardson, Addison, Arlington, and surrounding areas. That covers the full range of DFW gas-fireplace-dense neighborhoods – from established Garland subdivisions to newer Allen and Frisco builds. If you have a gas fireplace in the Metroplex, we can get to it.
Ready to Stop Guessing Why Your Gas Fireplace Won't Light?
A millivolt test gives you a confirmed answer. A matched part gives you a working fireplace. Call The Chimney Inspection & Sweep at 972-884-5553. You can also reach us at info@theonechimneysweep.com. Tell us what the pilot is doing and where you are in DFW – we will schedule the diagnostic visit and show up with the tools and parts to resolve it on the first trip.
FAQ
How much does pilot assembly replacement cost in Dallas?
Call 972-884-5553 for current rates. Cost depends on which component failed – thermocouple, thermopile, or full assembly – and the specific fireplace model. Millivolt testing confirms the exact failed part first, so you’re never quoted for components that don’t need replacing.
How long does a pilot assembly replacement take from diagnosis to working flame?
Most pilot assembly replacements are completed in a single visit of 60 to 90 minutes. Millivolt testing adds time upfront – but it eliminates a second trip for a misdiagnosed part. The job isn’t closed until the pilot holds and the main burner cycles correctly.
Does the millivolt test cost extra, or is it included in the service?
Millivolt testing is part of every pilot assembly call – not a separate charge. Connecting a meter to the thermocouple and thermopile leads takes minutes. That reading is what confirms which part failed before anything is disassembled or ordered.
Do you carry replacement parts on the truck, or will I have to wait for parts to be ordered?
Common thermocouple and thermopile replacements for Heatilator, Heat & Glo, Majestic, and Monessen units are stocked on the truck. Most DFW gas fireplaces in the 1995-2010 build window use components from these brands. Same-visit resolution is the standard – not the exception – for the most frequently serviced systems in the area.
